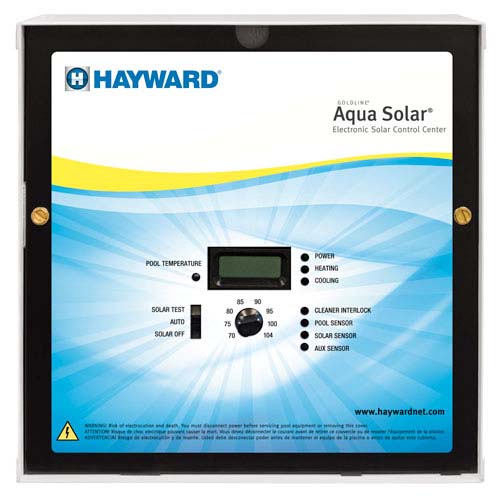

    Hayward Aqua Solar Control System | AQ-SOL-LV

    Our Products: Automation > Hayward Controls > Hayward Aqua Solar Controls
    SKU: AQ-SOL-LV
    Weight: 20 lbs
    #AQ-SOL-LV Goldline by Hayward Aqua Solar Pool Control with LV Output
    GTIN: 761418004331
    no longer available
    Add to Wishlist Add to Wishlist
    Hayward Aqua Solar Control System | AQ-SOL-LV
    Hayward Aqua Solar Control System | AQ-SOL-LV
    Previous Item Previous Item   Next Item Next Item
    Product Details

    #AQ-SOL-LV Goldline by Hayward Aqua Solar Pool Control with LV Output
    ITEM #  I_SOAQUA
    Description:
    Total Aqua Solar control system with dual digital display of pool water and solar collector temperatures plus full system diagnostic LEDs.

    •Automatically maximizes solar heat collection by actuating a 24V valve when there is solar heat available
    •Digital display
    •LED indicators show status of system operations
    •Automatic switching (selectable) from solar pool heating to nocturnal pool cooling
    •Single-setting adjustment for desired pool/spa temperature
    •Recirculation freeze protection
    •Installer-programmable features for any-system adaptability
    •Quick, accurate, easy-to-set desired temperature controls
    •Easy to read, understand and operate
    Aqua Solar Digital Solar Control System
    The Aqua Solar Digital Solar Control System is a differential temperature control for
    solar heating of pools, spas, and hot tubs.

    Specifications:
    Power:
    105-130VAC, .5A 50/60Hz. or
    195-250VAC, .3A 50/60Hz

    www.haywardpool.com
