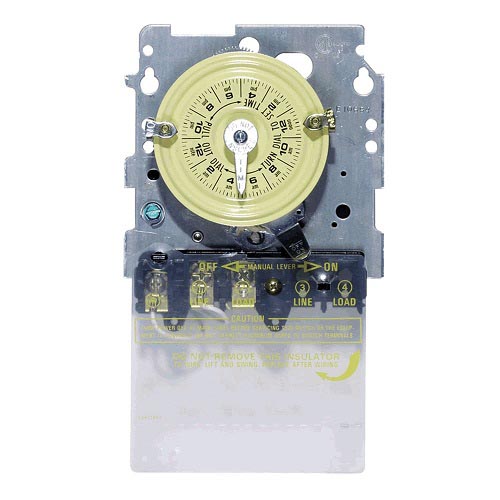

    Intermatic T106R Timer Mechanism | T106M

    Our Products: Pool Parts > Intermatic Parts > Intermatic Mechanical Timer Mechanisms
    SKU: T106M
    Weight: 2 lbs
    #T106M Intermatic Timer Mechanism, 208/277V
    Add to Wishlist Add to Wishlist
    Intermatic T106R Timer Mechanism | T106M
    Intermatic T106R Timer Mechanism | T106M
    Previous Item Previous Item   Next Item Next Item
    Product Details
    Intermatic Controls
    #T106M Intermatic Timer Mechanism, 208/277V

    Description:
    24hr Mechanical time switch (SPDT)
    208/277V
    The Intermatic heavy duty mechanical time switch is designed for industrial, commercial and residential applications. Features a high horsepower rating that is ideal for loads up to 40 amps resistive from 120-volts and direct 24-hour time switch control of most loads. All models are equipped with one "ON" and one "OFF" tripper.
    The unit contains a 1-circuit standard On/Off 1NO/1NC (can be wired SPDT) 40 Amps, 4000 watt capacity, 208-277 VAC 60 Hz.

    •Control electrical loads up to 40 Amps
    •Provides direct 24 hour control of most loads
    •1 to 12 ON/OFF operations each day
    •Minimum ON/OFF times of 1 hour
    •Manual override
    •All models equipped with one ON and one OFF tripper


    Includes:
    Mechanism Only for Intermatic T106R
