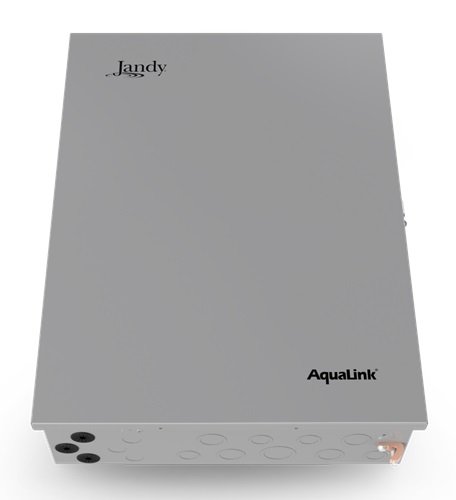

Jandy AquaLink RS Sub-Panel Power Center

Name: Jandy AquaLink RS Sub-Panel Power Center
Brand: Jandy
SKU: 6614-LDG
Availability: InStock

Our Products: Automation > Jandy Automation Control Systems > Jandy AquaLink RS Power Centers

SKU: 6614-LDG

Weight: 37 lbs

Units in Stock: 4

#6614-LDG Jandy AquaLink 125AMP Sub Panel Load Center, Gray

GTIN: 052337104180

Not available on line. Trade Grade Series. Available In Store only. Please call for price and availability.

Add to Wishlist

Jandy AquaLink RS Sub-Panel Power Center

Previous Item

Next Item

Product Details

#6614-LDG Jandy AquaLink RS 125AMP Sub Panel Load Center, Large Breaker Base, Gray

Features:
The 6614-LDG AquaLink RS Sub Panel includes 12 breaker mount plate slots and knockout for GFCI. AquaLink Power Centers are required for all Jandy AquaLink RS and PDA control systems. For integrated salt water chlorinator electronics, use Jandy's PureLink¢â€ž¢ Power Centers
Works with all AquaLink RS and Jandy PDA control models
Powder-coated, galvanized steel construction
Simple, top-down installation, 3 HP Relays
Add up to three auxiliary power centers within 500 feet of the primary power center

Technical Details:
An additional 4 Inches added to the low voltage raceway
120/24 VAC Transformer (supply input)
Multiple knockouts for 1/2" to 1 1/2" conduit
Service and time-out for all circuits (AquaLink RS and PDA)
Eight or 12 breaker mount plate slots for up to 125 amp breakers (sub-panel only)
GFCI side knockout (sub-panel only)
Optional surge protection for all components
6614-LDG Jandy AquaLink Sub Panel Load Center
