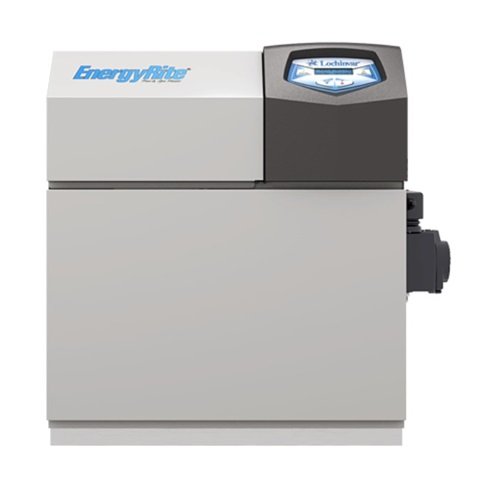

    Lochinvar EnergyRite 400 ASME Cupro Nickle High Elevation Pool and Spa Heater | ERN-402-A-8557

    Our Products: Pool Heaters > Lochinvar Pool Heaters > Lochinvar ASME Commercial Pool Heaters
    SKU: 100143244
    Weight: 245 lbs
    #ERN-402-A-8557 Lochinvar EnergyRite 400 ASME Cupro Nickle High Elevation 4000-8000 Foot Pool and Spa Heater, Natural Gas
    List Price: $4,299.99
    Price: $4,199.00
    Add to Wishlist Add to Wishlist
    Lochinvar EnergyRite 400 ASME Cupro Nickle High Elevation Pool and Spa Heater | ERN-402-A-8557
    Lochinvar EnergyRite 400 ASME Cupro Nickle High Elevation Pool and Spa Heater | ERN-402-A-8557
    Previous Item Previous Item   Next Item Next Item
    Product Details
    Lochinvar Energy-Rite 250 Heater, LP | ERL-252
    #ERN-402-A-8557 Lochinvar EnergyRite 400 ASME Cupro Nickle High Elevation Pool and Spa Heater*
    Natural Gas
    Part #100143244
    Model # ERN402-A-8557
    Lochinvar's EnergyRite® Low-Nox Pool and Spa Heater comes with the fastest heat up time in the industry, built in commercial grade construction plus is more efficient to lower operating cost. With thermal efficiencies of up to 88%, the  EnergyRite® will make an immediate impact on lowering your monthly fuel bill.

    Built to commercial grade standards, Lochinvar EnergyRite® pools heaters are better designed and better built. The rust free water surfaces are completely lined with a molecularly molded porcelain / glass mixture, extending the performance of your pool heater. To top it off the Lochinvar EnergyRite comes with a 3-year warranty on the heat exchanger and 2-year warranty on parts.

    The EnergyRite's gasket free, copper finned tube heat exchanger is the only one in its class - eliminating leaks and failures common with similar models, while providing years of efficient operation. Direct-spark ignition provides added reliability and efficiency. Every Lochinvar EnergyRite® pool heater is quality checked throughout the manufacturing process, giving you a pool heater built to a higher standard.

    Other advantages of the Lochinvar EnergyRite® pool and spa heater include a Built-in Floor Shield. No need to install a special surface to install your pool heater, place it directly on a combustible surface, even your deck. The combustion chamber of the EnergyRite® is fully shielded and windproof. This also prevents unpleasant surprises in the Spring from wasp and spiders nesting in your pool heating unit.

    ASME addendum
    1. Heat exchanger
    Allows pool water to flow through specially designed tubes for maximum heat transfer, while providing protection against flue gas corrosion.
    2. Outlet temperature sensor
    This sensor monitors outlet water temperature and will shut down the unit if this temperature gets too high.
    3. Inlet temperature sensor
    This sensor monitors the inlet water temperature and will be used by the integrated control to determine whether an ignition cycle should begin.
    4. Water outlet (pool supply)
    For an ASME unit, connection to the pool heater can be made with either 2¢â‚¬ threaded pipe or a slip connection with 1 1/2¢â‚¬or 2¢â‚¬pipe.
    5. Water inlet (pool return)
    For an ASME unit, connection to the pool heater can be made with either 2¢â‚¬ threaded pipe or a slip connection with 1 1/2¢â‚¬ or 2¢â‚¬ pipe.
    6. High limit sensor
    Device that monitors the outlet water temperature.  If the temperature exceeds 175°, it will break the control circuit,
    shutting the pool heater down.
    7. Pressure relief valve
    A pressure relief valve is installed in the vertical position and mounted in the front header on the hot water outlet of the pool heater.  To prevent water damage, the discharge from the relief valve shall be piped to a suitable floor drain for disposal when relief occurs.
    8. Pool heater drain port (total of 3 - not shown)
    Location from which the heat exchanger can be drained
