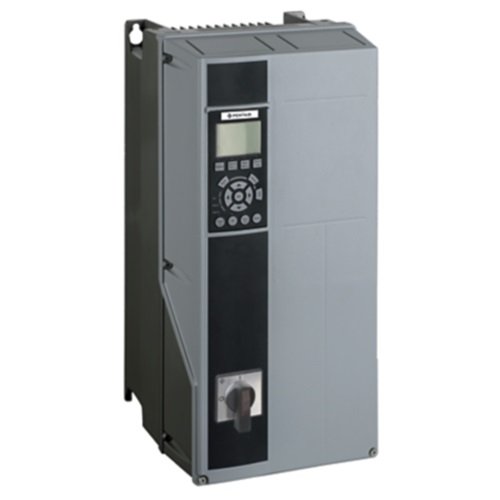

Pentair 10 HP Acu Drive XS Variable Frequency Drive Pool Pump Control, 230V | AD100X-2303-N12

The Acu Drive XS offers built-in intelligence for increased performance in all aquatic pump applications. Specified to save energy, space, costs, and time, the Acu Drive XS offers a very fast return on investment. The Acu Drive allows the pump to run at its most efficient point on the curve. Preventative maintenance costs will drop due to motor protection, motor soft start, and a significant decrease in water hammer protecting the shaft and impeller. Up to an additional 5% savings due to the Acu Drive's ability to balance power phase and harmonic suppression. Built with powerful standard and optional features specifically designed for energy optimization, the Acu Drive is perfectly matched with the full line of Pentair Water Commercial Pool and Aquatics pumps.

Save up to 60% or more on the pump's electricity usage

"Right-size" your pump to the exact flow required

Saves energy with constant flow as the filters get dirty (with optional flow sensor)

Off-hour flow management capability

Does not blow corrosive filter-room air across the circuitry

High efficiency up to 98% - adjusts drive input voltage for best efficiency point

Eliminates the need for motor starters

Integrated disconnects, fusing, and optional bypasses

2-step ramps (Soft Start Feature)

Real-time clock for time-based functions

Overload trip protection protects the motor and Acu Drive from Voltage Spikes and phase imbalance

Can connect to an IntelliTouch system

Up to a 6-year on-site warranty is available

Start-up available with every drive (technical training option available)

Indoor and outdoor-rated enclosures

One drive type for the full power range

For use with 3-phase pumps only
