    Pentair THS Series Horizontal Commercial Pool Sand Filter, 19 SQ FT | 143484

    Our Products: Pool Filters > Pentair Pool Filters > Pentair Triton C and THS, Commercial Pool Sand Filters > Pentair THS Commercial Pool Series Sand Filters
    SKU: 143484
    Weight: 650 lbs
    #143484 Pentair THS Series Horizontal Commercial Pool Sand Filter, 19 Sq. Foot
    GTIN: 788379666675
    List Price: $14,149.99
    Price: $13,900.00
    You Save: $249.99 (2%)
    Add to Wishlist Add to Wishlist
    Pentair THS Series Horizontal Commercial Pool Sand Filter, 19 SQ FT | 143484
    Pentair THS Series Horizontal Commercial Pool Sand Filter, 19 SQ FT | 143484
    Previous Item Previous Item   Next Item Next Item
    Product Details

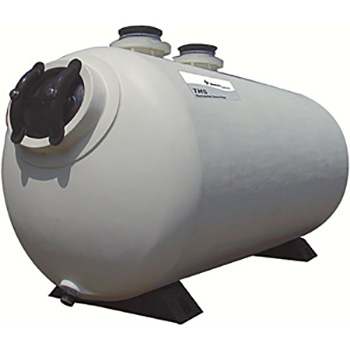

    #143484 Pentair THS Series Horizontal Commercial Pool Sand Filter, 19 Sq. feet
    THS Series Horizontal Sand Filters
    34"X84" 19SQFT THS HORIZONTAL Pool SAND FILTER
    UPC 788379666675
    The THS Filter is an NSF - approved 50 psi rated tank with flow rates up to 535 gallons per minute. the filter shell is manufactured from a unique and lasting composite laminate design that makes winding unnecessary. Paracote, a water based, environmentally- friendly coating, provides remarkable surface protection.
    Features:
    Five sizes to 27 sq. ft.
    Manway in front for easy access and smaller footprint
    Manway with viewport available as option
    6 in. flanged connections, 4 in. victaulic on the THS 3461

    Optional manual, semi-automatic, and automatic backwash
    systems for one and two tank systems
    Two backwash controllers to choose from
    Influent manifold distribution to prevent clogging
    NSF approved from 5-20 gpm/sq. ft.

    Specifications:
    THS Series Horizontal Sand Filter,
    Effective Filtration Area: 19 sq-ft,
    Flow Rate: 285 gpm,
    Turnover Capacity: 8 hr - 136800 gal,
    All Sand Required: 1950 lb, Filter Media Sand Required: 1350 lb, Filter Media Pea Gravel Required: 600 lb,
    34 Inch Diameter Tank
    84 Inch Length Tank

    www.pentairpool.com
