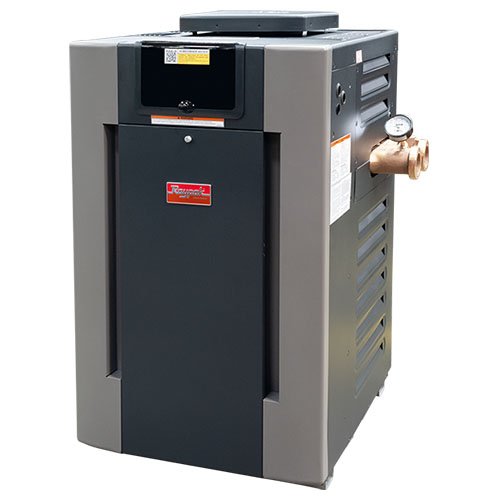

Raypak 207 LowNOx ASME Bronze Cupro Nickel Pool Heater

#017709 Raypak 207 Digital Low NOx ASME Bronze Certified Pool and Spa Heater, Cupro-Nickel HD, 199,000BTU, Natural Gas
Elevation: 0-5000 (feet),  #B-R207AL-EN-X
Free Shipping!
These units meet the ASME pressure vessel requirements demanded by code for commercial installations over 200,000 BTUH and are certified to the ANSI Z21.56 pool heater standard. So dive in and take a look at the Raypak heater that can meet your exact needs. Just click on the links below for more information. Rugged bronze headers provide the strength that tough ASME requirements demand.

These Raypak B-R207A-EN-X Low NOx Emissions units use combustion control to minimize levels of nitrogen oxides (NOx). The units meet emissions standards in all Low NOx areas, from Los Angeles (SCAQMD Rule 1146.2 certified) through the San Joaquin Valley (SJAPCD Rule 4308), and any other areas applying the stringent SCAQMD standard - the "Gold Standard" of emissions regulations - to residential pool heaters.  Digital Controls, Provide solid-state reliability and accuracy and clear diagnostics. Setting it for the temperature you want is a snap...push a few buttons and walk away.

The Raypak B-R207A-EN-X Digital Low NOx ASME Certified Cupro-Nickel gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service

Wind-Resistant Design
No need for fans to combat drafting problems. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.

All-Copper-Fin-Tube Heat Exchanger
The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade. These headers are specifically designed for the residential market...for commercial installations, use the ASME models.

Stainless Steel Tube Sheet
Stainless steel tube sheets are used on all Digital Low NOx gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free.

Bronze 2" Water Connections
Standard with every Digital LOwNOx is a set of 2" Bronze water connections to make your installation secure and effortless.

Condensation Protection
The Unitherm Governor inside the header helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105‚°F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life.

High Flow Rates
The Digital LOw NOx gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 GPM.

Burner Tray
Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing.

Fire Tile
A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.

Fuel-Efficient
Energy-smart Digital Low NOx heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards.
B-R207AL-EN-X
