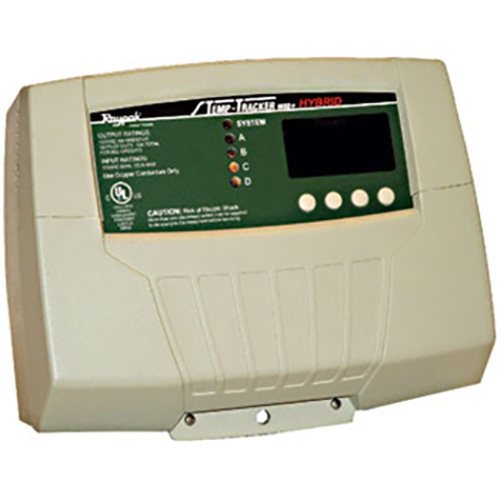

    Raypak XTHERM B-36 Temp-Tracker Module | 011922

    Our Products: Pool Heaters > Raypak Pool Heaters > Raypak Commercial Pool Heaters
    SKU: kk011922
    Weight: 7 lbs
    #011922 Raypak XTHERM TempTracker Mod+ Hybrid
    Price: $2,173.50
    Add to Wishlist Add to Wishlist
    Raypak XTHERM B-36 Temp-Tracker Module | 011922
    Raypak XTHERM B-36 Temp-Tracker Module | 011922
    Previous Item Previous Item   Next Item Next Item
    Product Details
    Raypak 407 Digital LowNOx Heater 009243 | P-R407AL-EN-C #26
    #011922 Raypak XTHERM TempTracker Mod+ Hybrid
    Multi-Boiler Modulating Controller
    Up to 4 Units
    The TempTracker MOD+ Hybrid is available as a loose option and controls up to four MVB, XTherm, XFyre and Raytherm modulating boilers for precise load tracking of space heating and hot water supply systems. Expand the control to 16 boilers by adding up to two six-boiler expansion modules. TempTracker Mod+ monitors and displays supply water temperatures on all applications including outdoor temperature when outdoor reset mode is selected. As an added feature, this model offers PID logic as well as automatic or manually selectable lead-lag boiler operation. During boiler servicing or in the event of a controller problem, a manual override feature can be activated to bypass programmed operation.

    Programmable Functions
    Selectable modulating outputs (4-20 mA, 1-5 VDC, 2-10 VDC, 0-5 VDC or 0-10 VDC)
    Adjustable outdoor reset ratio (1:4 to 4:1)
    Min. system water temperature (70 to 180 °F)
    Max. system water temperature (90 to 240 °F)
    Automatic/manual lead-lag (1 to 1440 hrs.)
    Initial setpoint (70 to 240 °F)
    Outdoor cutoff (20 to 100 °F)
    Morning boost (30 min.)
    Night setback (0 to 75 °F)
    DHW override (with or without priority)
    System sensor gain (-5 to +5 °F)
    Outdoor sensor offset adjustment (-5 to +5 °F)
    Boiler gain (-10 to +10 °F)
    Boiler-on delay (0 to 60 min)
    System pump-off delay (0 to 360 min)
    Standby boiler delay (1 to 60 min)
    Temperature measurement (°F or °C)
