    Sta-Rite 20HP CCSP Series Commercial Pool Pump | CCSPHN3-145

    Our Products: Pool and Spa Pumps > Sta-Rite Pool and Spa Pumps > Sta-Rite Commercial Pumps > Sta-Rite CSP/CCSP Series Commercial Pumps
    SKU: CCSPHN3-145
    Weight: 350 lbs
    Units in Stock: 1
    #CCSPHN3-145 Sta-Rite 20HP, CCSP Series - 230/460V, 3 Phase CSP/CCSP Series Commercial Pool/Fountain Pump\, Cast Iron, Epoxy Coated, No Strainer
    GTIN: 022315373181
    Price: $8,599.00
    Add to Wishlist Add to Wishlist
    Sta-Rite 20HP CCSP Series Commercial Pool Pump | CCSPHN3-145
    Sta-Rite 20HP CCSP Series Commercial Pool Pump | CCSPHN3-145
    Previous Item Previous Item   Next Item Next Item
    May we also suggest...
    Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
    Sta-Rite CCSP Series Commercial Pool Pump Strainer, Blue Epoxy | PKG-184C
    Sta-Rite CCSP Series Commercial Pool Pump Strainer, Blue Epoxy | PKG-184C
    Price $3,290.00
    Sta-Rite CSP Series Commercial Pool Pump Strainer, Standard | PKG-184
    Sta-Rite CSP Series Commercial Pool Pump Strainer, Standard | PKG-184
    Price $2,656.00
    Product Details
    Sta-Rite Filters
    #CCSPHN3-145 Sta-Rite 20HP, CCSP Series - 230/460V, 3 Phase
    CSP/CCSP Series Commercial Pool/Fountain Pump\, Cast Iron, Epoxy Coated, No Strainer*

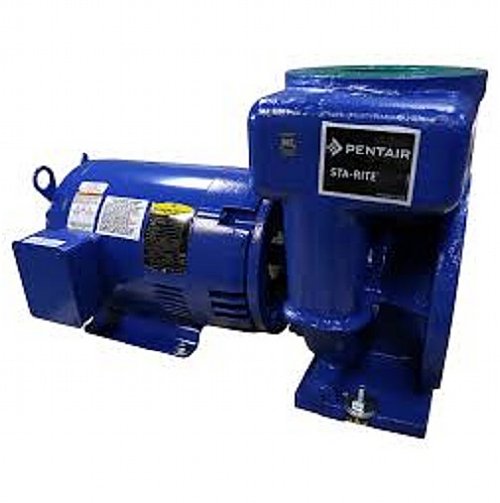

    These CCSP Series pumps are specifically designed for commercial/public pools and spas where high performance and self-priming characteristics are desired. Rugged cast iron construction with bronze impellers. Shown with optional Optional Epoxy Coated oversized hair and lint trap for large debris capacity available. CCSP Series is epoxy coated. Especially designed for commercial and public swimming pools and spas, aquatic facilities, water parks and fountain applications where high performance and self-priming are required. Pump has enclosed bronze impeller and standard 6" x 4" A.N.S.I. flange connections (D.I.N. option available for 50 Hz models). The pump strainer (ordered separately) has capacity of 1,100 cubic inches. Both pump and strainer can be ordered with optional epoxy coated castings to provide additional performance and corrosion resistance.

    Features:
    Cast iron construction, enclosed bronze impeller and bronze wear rings for long lasting reliability.
    Exceptional self priming design with hair and lint strainer installed  allows pumps to be installed above or below water level.
    Optional Oversized hair and lint strainer* with electro-polished stainless steel basket holds a large quantity of debris.
    Available in a wide range of performance levels from 71⁄2 to 20 HP to handle your varied pumping needs.
    Nationally recognized NEMA® motors offer high performance under continuous operation.
    Back pull-out design enables servicing of normal wearing parts without disconnecting piping.
    Dimensionally compatible to most installations for easier initial hook-ups or retrofits.
    Integral design base is slotted for ease of mounting.

    *PKG-184C or PKG-184 Sta-Rite Pump Strainer, Blue Epoxy Purchased Separately
